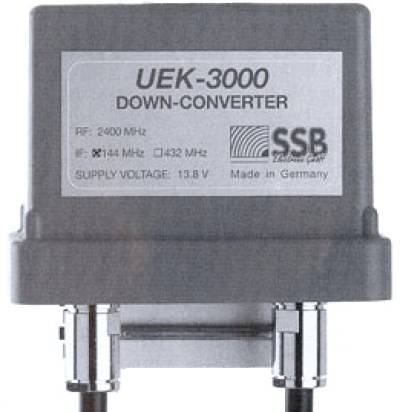

SSB Electronics UEK-3000

Type: UHF Receiving Converter
Frequency Range: 2400-2404 MHz
IF: 144-148 MHz
Gain: 30 dB
Noise figure: Max 0.7 dB
Voltage: 13.8 VDC
Current Drain: 150 mA
Aerial Input: 50 ohms. N-type
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: Germany, 199x-200x
Other: HEMT input stage. DC supplied via coax
Intended primarily for Oscar 40
