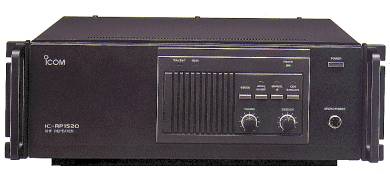

Icom IC-RP1520
| Type: |
Amateur VHF repeater |
| Frequency Range: |
144-148 MHz |
| Mode: |
FM |
| RF Power output: |
25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max 1 A, TX: Max 8 A |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
425*149*368 mm |
| Weight: |
17 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
