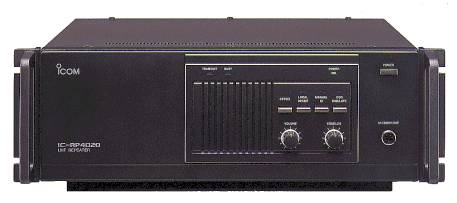

Icom IC-RP4020
| Type: |
Amateur UHF repeater |
| Frequency Range: |
430-450 MHz |
| Mode: |
FM |
| RF Power output: |
10, 25 or 50 W depending on version |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max 1.2 A, TX: Max 7, 10 or 17 A depending on version |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
425*149*368 mm |
| Weight: |
17 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
