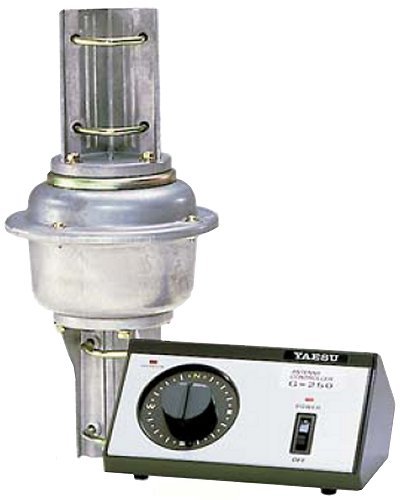

Yaesu G-250

Type: Azimuth rotator
Voltage: Mains
Power consumption: 37 VA
Motor voltage: 24 V, split phase
360 rotation time: 52 seconds @ 50 Hz
43 seconds @ 60 Hz
Rotation torque: 200 Kg/cm
Braking torque: 600 Kg/cm
Max wind load area: 0.2 sqm
Max dead vertical weight: 50 Kg
Control cable: 6 conductors, #20 AWG or better
Mast diameter: 25-38 mm
Dimensions (W*H*D): Rotator: 142 mm diameter * 315 mm height
Weight: Rotator: 1.8 Kg
Controller: 1.1 Kg
Manufactured: Japan, xxxx-200x
Other:
Related Documents: User Manual (396 KB)
