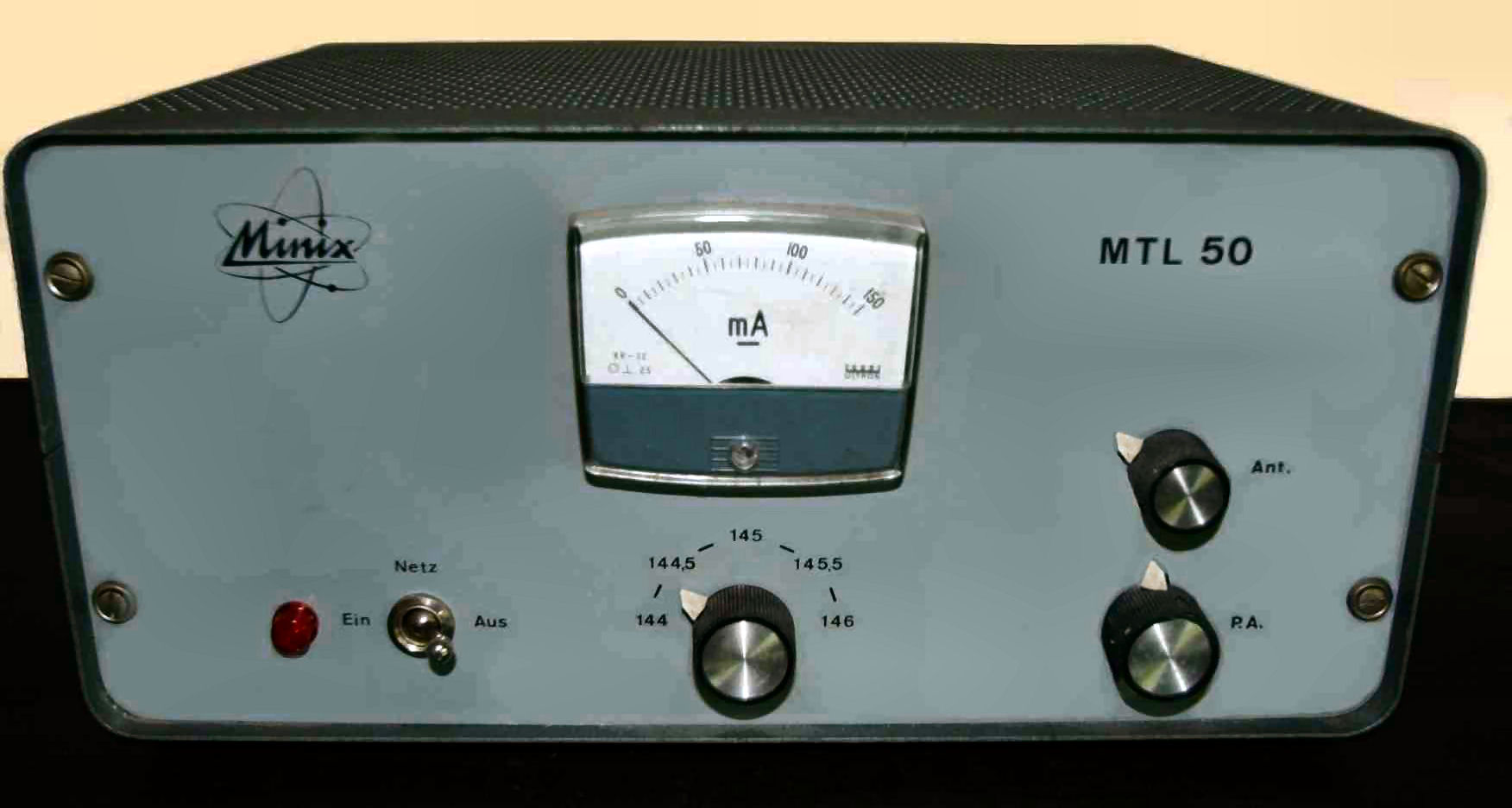

Minix MTL-50

Type: Amateur VHF to HF Transverter
Frequency Range: TX: 144-146 MHz (4*500 KHz XTAL-controlled ranges)
RX: 144-146 MHz (4*500 KHz ranges)
IF: 14-14.5 MHz
Drive power: 0.5 W
RF power output: SSB/CW: 50 W (PEP)
Voltage: Mains
Current Drain: ?
Aerial Input: 50 ohms
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: Japan, 1968-19xx
Other: RX section is optional (2G10, made by Götting & Griem)
New price 1968 in West Germany: DM 748.- (without 2G10)
Related Documents: Schematic (226 KB)
