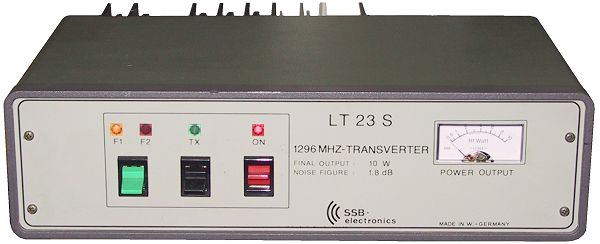

SSB Electronics LT-23S

Frequency Range: 1296-1298 MHz
IF: 144-146 MHz
Drive power: 0.1-10 W
RF power output: 10 W
Voltage: 14.5 VDC
Current Drain: RX: 0.2 A
TX: Max 2.5 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 300*90*220 mm
Weight: 2.5 Kg
Manufactured: West Germany, 19xx-19xx
Other: NF 1.8 dB
