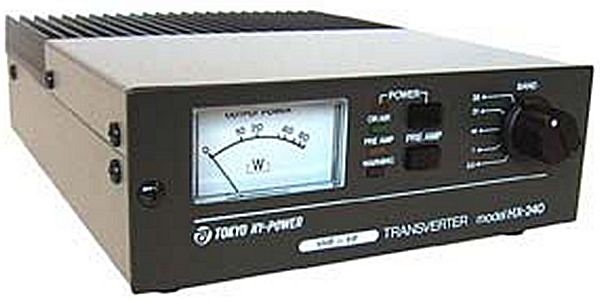

Tokyo Hy-Power HX-240

Type: Amateur Transverter
Frequency Range: 10-80 m
IF: 2 m
Drive power: 2.5 or 10 W selectable
RF power output: SSB/CW: 30-40 W (PEP)
FM: 30 W
Voltage: 13.8 VDC
Current Drain: Max 7 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 146*50*192 mm
Weight: 1.3 Kg
Manufactured: 1991-200x
Other:
Related Documents: User Manual (HX-240,HX-640) (672 KB)
