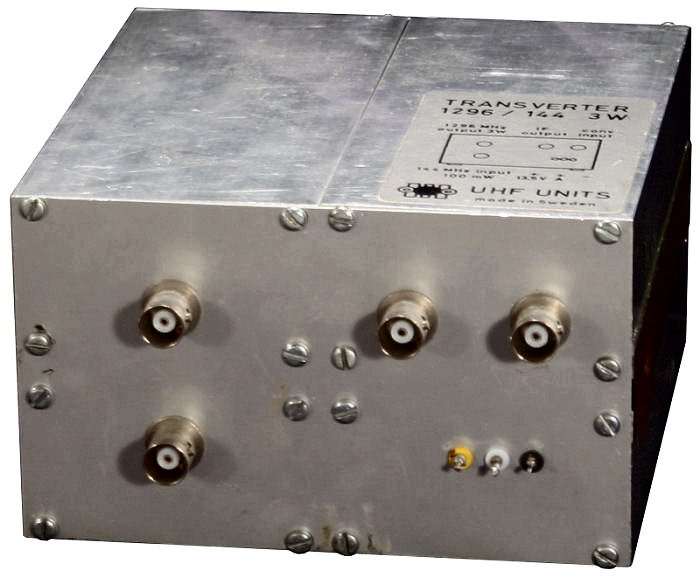

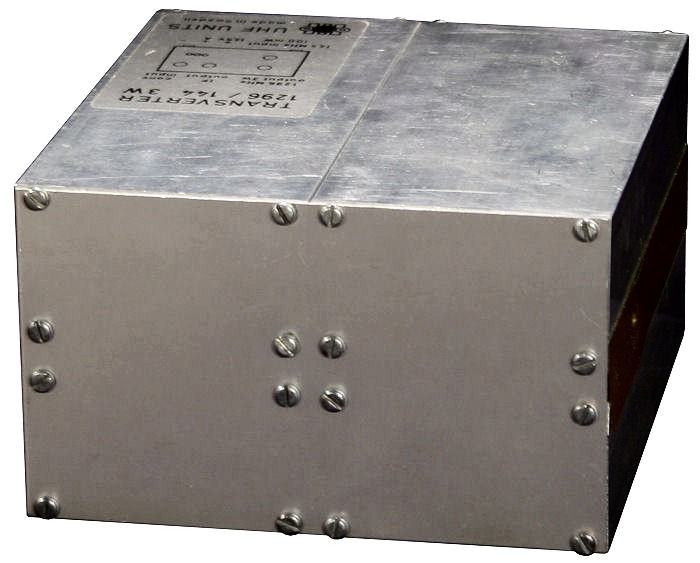

UHF Units 1296-144 3W

Type: Amateur Transverter
Frequency Range: 1296 MHz
IF: 144 MHz
Drive power: Max 100 mW
RF power output: 3 W
Voltage: 13.8 VDC
Current Drain: ? mA
Aerial Input: 50 ohms, 4x BMC
Dimensions (W*H*D): 130 x 77 x 137 mm
Weight: 820 gr
Manufactured: Sweden, 1983-198x (Discontinued)
Other:
Related Documents: User Manual (1.04 MB)
