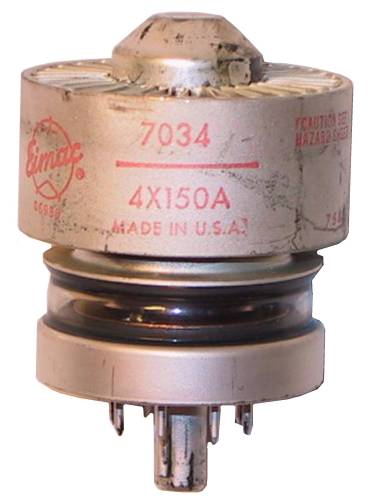

4X150A

Type: Tetrode
Frequency: 175 MHz (500 MHz)
Class: AB1
Max power output: 150 W (500 Mhz: 120 W)
Drive power: 1 W
Heater voltage: 6 V
Heater current: ? A
Plate voltage: Max 1000 V
Plate current: Max 200 mA
Plate dissipation: Max ? W
Screen voltage: Max 250 V
Manufactured: 19xx-19xx
Other:
Extras:
