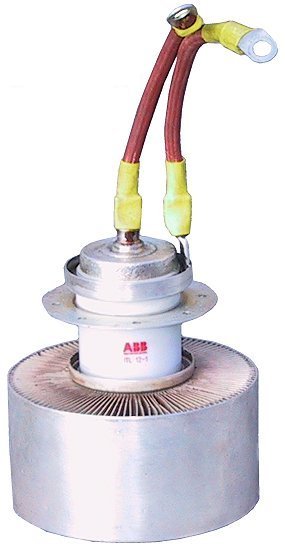

ITL 12-1

Type: Ceramic-metal air-cooled triode
Frequency: 120 MHz
Class: C
Max power output: CW: 33 KW
Drive power: ? W
Heater voltage: 5.8 V
Heater current: 145 A
Plate voltage: 6-12 KV (depending on frequency)
Plate current: 5 A
Plate dissipation: 9 KW
Screen voltage: 960 V
Manufactured: 19xx-19xx
Other:
Related Documents:
