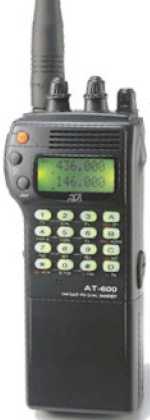

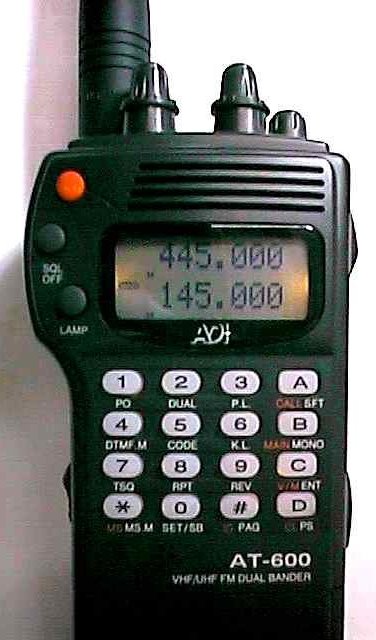

ADI AT-600HP

Type: Amateur VHF/UHF transceiver
Frequency Range: TX: 144-148 / 430-450 MHz
RX: 108-174 / 400-470 / 900-985 MHz
Mode: TX: FM
RX: AM/FM
RF Power output: Hi: 5 W
Lo: ? W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6-16 VDC
Current Drain: RX: 20-250 mA
TX: Max 1.4 A
Aerial Input: 50 ohms
Dimensions (W*H*D): ? mm
Weight: ? gr
Manufactured: 19xx-19xx
Other: CTCSS and DTMF
Related Documents: User Manual (3.80 MB)
