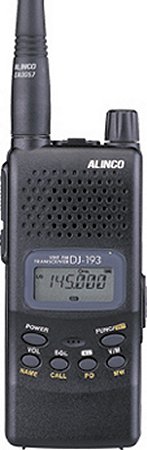

Alinco DJ-193J

Type: Amateur VHF Transceiver
Frequency Range: 144-146 MHz
Modes: FM
RF Power output: Hi: 5 W
Lo: ? mW
Sensitivity: N/A
Selectivity: 6 KHz (-6 dB), 13 KHz (-60 dB)
Image rejection: 60 dB
Voltage: 8-16 VDC
Current Drain: RX: 20-50 mA
TX: Max 1.2 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 56*124*37 mm
Weight: 320 gr (with EBP-50N)
Manufactured: Japan, 200x-200x
Other:
Related Documents:
