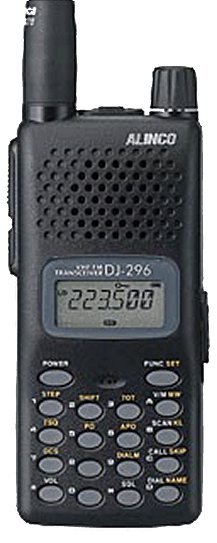

Alinco DJ-296

Type: Amateur VHF Transceiver
Frequency Range: TX: 222-225 MHz
RX: 216-250 MHz
Modes: FM
RF Power output: Hi: 4 W
Lo: 1 W
Frequency Steps: 5, 10, 12.5, 15, 20, 25, 30 kHz
Selectivity: N/A
Image rejection: N/A
Voltage: 7-16 VDC
Current Drain: RX: 20-280 mA
TX: Max: 1.2 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 56*124*37 mm
Weight: 310 gr (with EBP50N)
Manufactured: 19xx-19xx
Other: 160 memories. CTCSS/DCS/DTMF
Theft alarm. Experimental mosquito repeal feature
