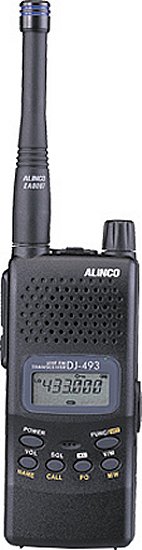

Alinco DJ-493J

Type: Amateur UHF Transceiver
Frequency Range: 430-440 MHz
Modes: FM
RF Power output: Hi: 4 W
Lo: ? mW
Sensitivity: N/A
Selectivity: 6 KHz (-6 dB), 13 KHz (-60 dB)
Image rejection: 60 dB
Voltage: 7-16 VDC
Current Drain: RX: 20-50 mA
TX: Max 1.4 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 56*124*37 mm
Weight: 300 gr (with EBP-50N)
Manufactured: Japan, 200x-200x
Other:
Related Documents:
