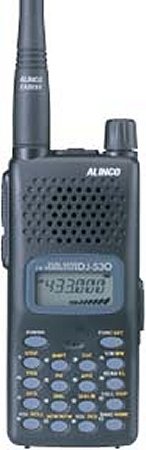

Alinco DJ-530J

Type: Amateur VHF/UHF Transceiver
Frequency Range: 144-146 / 430-440 MHz
Modes: FM
RF Power output: Hi: 5/5 W
Lo: 800/800 mW
Sensitivity: N/A
Selectivity: 6 KHz (-6 dB), 15 KHz (-60 dB)
Image rejection: 60 dB
Voltage: 6-16 VDC
Current Drain: RX: 28-74 mA
TX: Max 1.8 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 58*97*37 mm
Weight: 310 gr
Manufactured: Japan, 2004-200x
Other: Keypad
10F3 digital voice option (EJ-47U)
