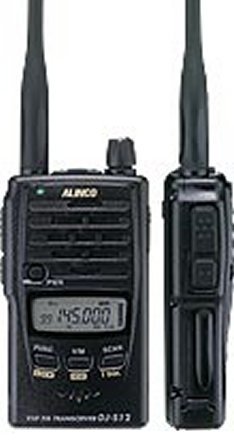

| Type: | Amateur VHF Transceiver |
| Frequency Range: | 144-146 MHz (Asia) |
| Modes: | FM |
| RF Power output: | Hi: 1 W Lo: 0.5 W |
| Sensitivity: | N/A |
| Selectivity: | 12 KHz (-6 dB), 35 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 3.7 VDC (battery pack) or 3-6 VDC external |
| Current Drain: | RX: 12-65 mA TX: Max 800 mA |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 57*98*28 mm |
| Weight: | 162 gr (with antenna and EBP-60) |
| Manufactured: | 2006-200x |
| Other: | 100 memories |
