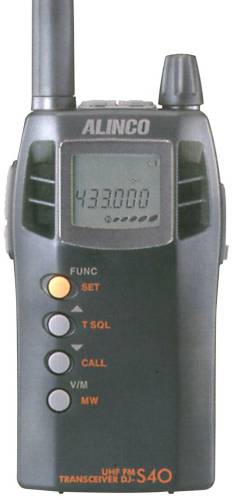

| Type: | Amateur UHF Transceiver |
| Frequency Range: | 430-440 MHz (5-50 KHz steps) |
| Modes: | FM |
| RF Power output: | Hi: 1 W Lo: 200 mW |
| Sensitivity: | N/A |
| Selectivity: | 6 KHz (-6 dB), 14 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 3.6-4.5 VDC |
| Current Drain: | RX: 15-40 mA TX: Max 600 mA |
| Aerial Input: | 50 ohms, SMA |
| Dimensions (W*H*D): | 56*102*28 mm |
| Weight: | 160 gr (with batteries) |
| Manufactured: | 2001-200x |
| Other: | 100 memories, CTCSS & theft alarm New price 2001 in the UK: £99.95 |
| Related Documents: | N/A |
