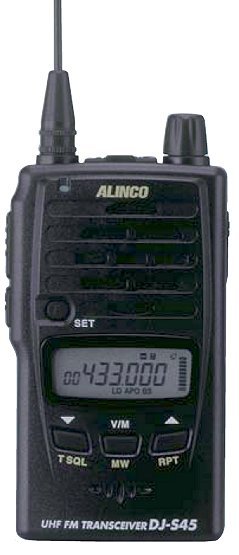

| Type: | Amateur UHF Transceiver |
| Frequency Range: | TX: 420-450 MHz RX: 420-474 MHz |
| Modes: | FM |
| RF Power output: | Hi: 2 W (6 VDC), 400 mW (2.4 VDC) Lo: 500 mW (6 VDC), 150 mW (2.4 VDC) |
| Sensitivity: | -15 dBu or better (12 dB SINAD) |
| Selectivity: | 6 KHz (-6 dB), 14 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 2*R6/AA or Li-Ion pack. Also 3-6 VDC external |
| Current Drain: | RX: Max ? mA TX: 0.45-1 A |
| Aerial Input: | 50 ohms, SMA |
| Dimensions (W*H*D): | 57*98*28 mm |
| Weight: | 162 gr (with batteries and antenna) |
| Manufactured: | 2006-200x |
| Other: | 100 memories. CTCSS. PC-programmable. |
