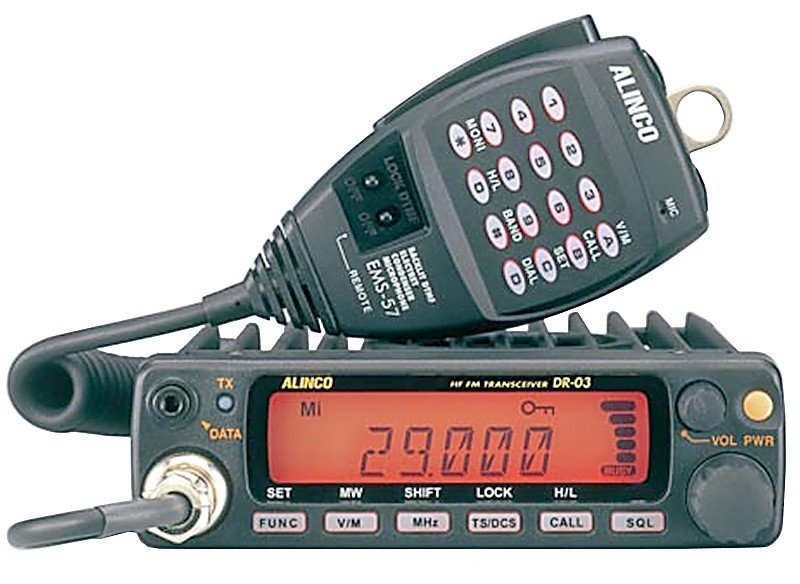

Alinco DR-03T
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
28.0-29.7 MHz
(TX: 26.005-36.500, RX: 26-40 MHz After Modification) |
| Modes: |
FM/NFM |
| RF Power output: |
Hi: 10 W
Mid: 5 W
Lo: 1 W |
| Sensitivity: |
12 dBu (12 dB SINAD) |
| Selectivity: |
FM: 12 KHz (-6 dB), 28 KHz (-60 dB)
NFM: 6 KHz (-6 dB), 16 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 600 mA
TX: 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
142 x 40 x 174 mm |
| Weight: |
1 Kg |
| Manufactured: |
2008-20xx |
| Other: |
101 memories. Repeater offset. CTCSS option. |
