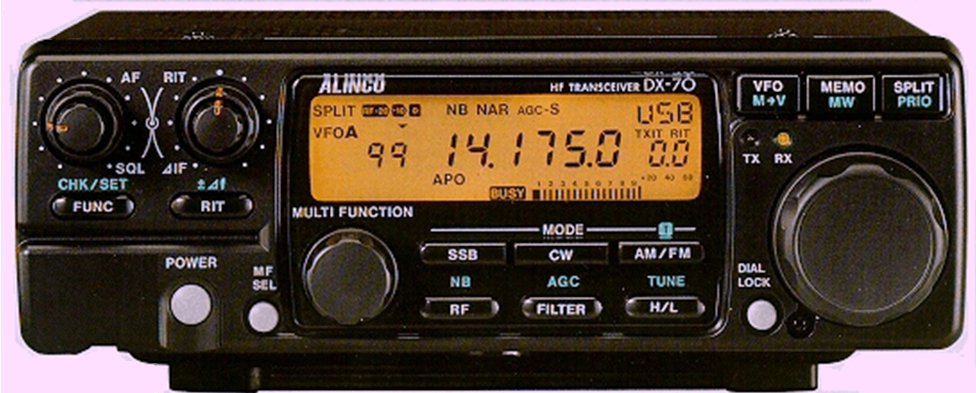

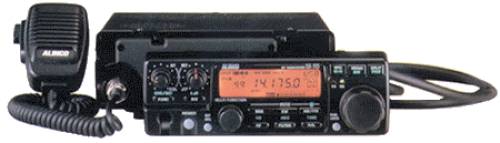

Alinco DX-70TH
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.15-30 / 50-54 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
100 W/100 W (AM: 40/40 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
Better than 70 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.8-1 A
TX: Max 25 A |
| Aerial Input: |
50 ohms, 2*SO-239 |
| Dimensions (W*H*D): |
178*58*230 mm |
| Weight: |
2.7 Kg |
| Manufactured: |
1997-19xx |
| Other: |
Detachable panel. CTCSS. 100 memories |
| Related Documents: |
|
 |
