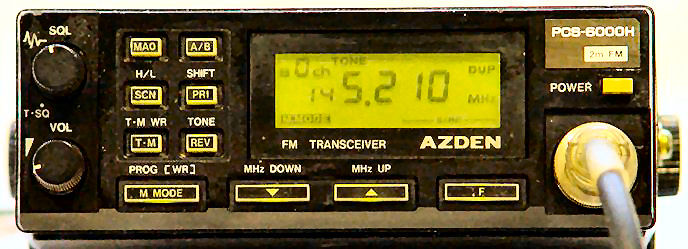

Azden PCS-6000H
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-148 MHz
RX: 118-174 MHz |
| Mode: |
TX: FM
RX: AM/FM |
| RF Power Output: |
Hi: 50 W
Lo: 10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.6 A
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
5.5*2*7.25 inches |
| Weight: |
1.4 Kg |
| Manufactured: |
1991-199x |
| Other: |
20 memories. CTCSS |
| Related Documents: |
User Manual (409 kb) |
|
