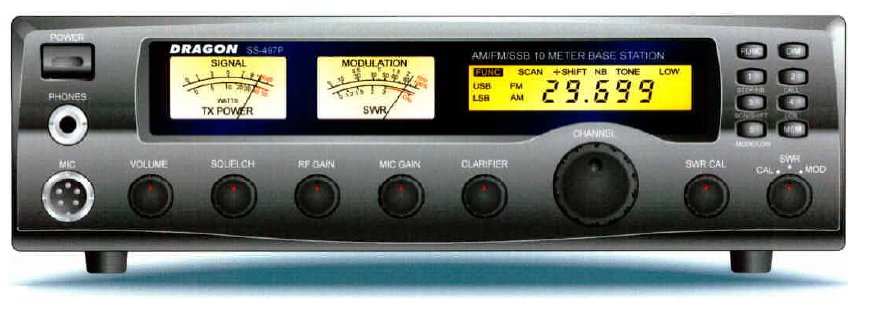

Dragon SS-497P
| Type: |
Amateur HF transceiver |
| Frequency Range: |
28-29.699 MHz |
| Mode: |
AM/FM/SSB |
| RF Power output: |
AM: 20 W
FM: 50 W
SSB: 50 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
300 x 85 x 240 mm |
| Weight: |
3.4 Kg |
| Manufactured: |
xxxx-xxxx |
| Other: |
|
| Related Documents: |
Sales Brochure (207 Kb) |
|
