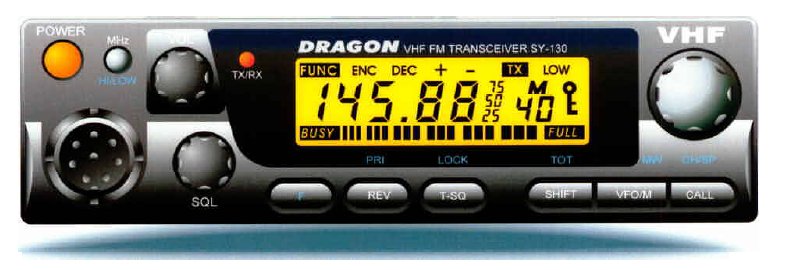

Dragon SY-130EZ
|
| Type: | Amateur VHF transceiver |
| Frequency Range: | TX: 144-146 MHz RX: 136-174 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Lo: 10 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current Drain: | RX: 0.8 A TX: Max ? A |
| Aerial Input: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*40*154 mm |
| Weight: | ? Kg |
| Manufactured: | xxxx-xxxx |
| Other: | 30 memories |
| Related Documents: | Sales Brochure (180 Kb) |
