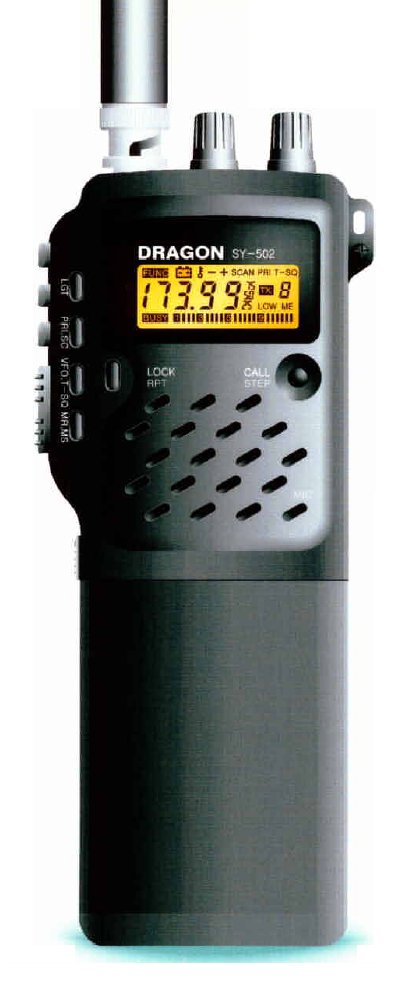

Dragon SY-502
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
TX: 144-148 MHz, RX: 136-174 MHz
TX: 144-146 MHz, RX: 144-146 MHz
TX: 144-146 MHz, RX: 136-174 MHz
TX: 136-174 MHz, RX: 136-174 MHz |
| Mode: |
FM (F3E) |
| RF Power output: |
Max: 4 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: 35-55 mA
TX: Max 700 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions: |
65W x 37H x 187D mm |
| Weight: |
100g (With Empty Battery Pack) |
| Manufactured: |
xxxx-xxxx |
| Other: |
10 Preset Memories
CTCSS |
| Related Documents: |
Sales Brochure (156 Kb) |
|
