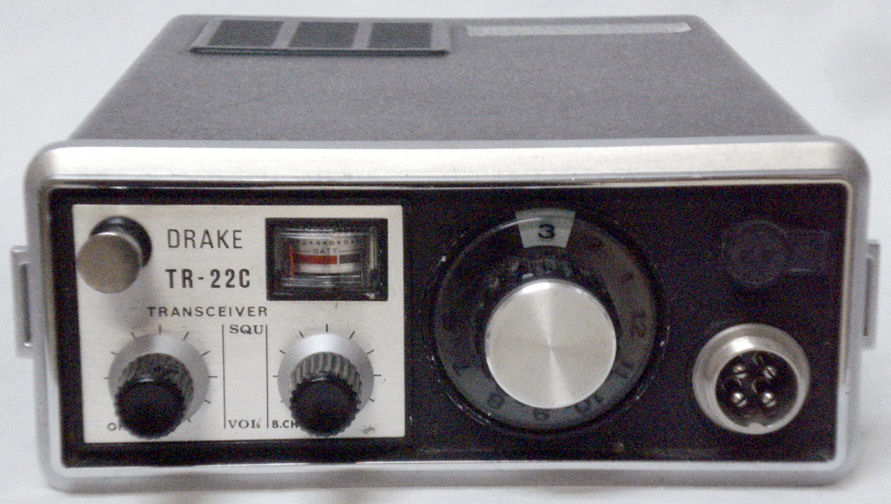

Drake TR-22C
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz |
| Mode: |
FM |
| RF Power output: |
1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: N/A
TX: N/A |
| Aerial Input: |
50 ohms or telescopic whip |
| Dimensions (W*H*D): |
135 x 58 x 181 mm |
| Weight: |
1.7 Kg |
| Manufactured: |
197x-197x |
| Other: |
12 channels. XTAL
|
| Related Documents: |
Manual (2.96 MB) |
 |
