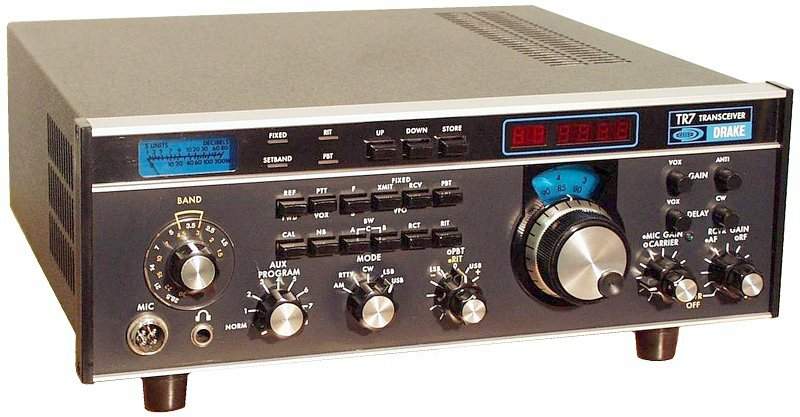

Drake TR-7
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m
RX: 1.5-30 MHz |
| Mode: |
SSB/CW/AM |
| RF Power output: |
120 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: Max 25 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
346*116*317 mm |
| Weight: |
7.7 Kg |
| Manufactured: |
USA, 1978-198x |
| Other: |
|
| Related Documents: |
|

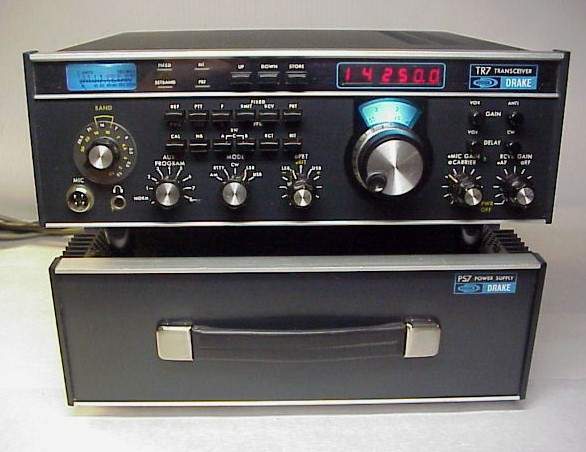

TR-7 + PS-7 (Power Supply) :
 |
