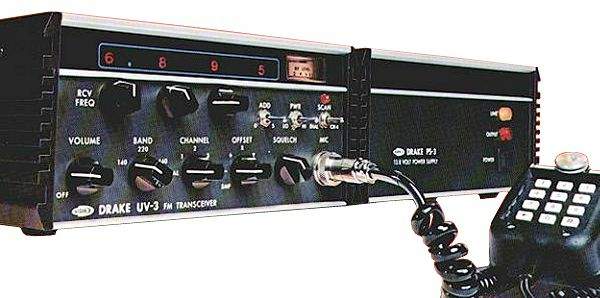

Drake UV-3
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-148 / 220-??? / 430-450 MHz (5 KHz steps) |
| Mode: |
FM |
| RF Power output: |
Hi: 35/15/10 W
Lo: 3.5/2/1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.1 A
TX: 2.5-6.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
203*102*381 mm |
| Weight: |
5 Kg |
| Manufactured: |
1978-19xx |
| Other: |
|
| Related Documents: |
|
|
