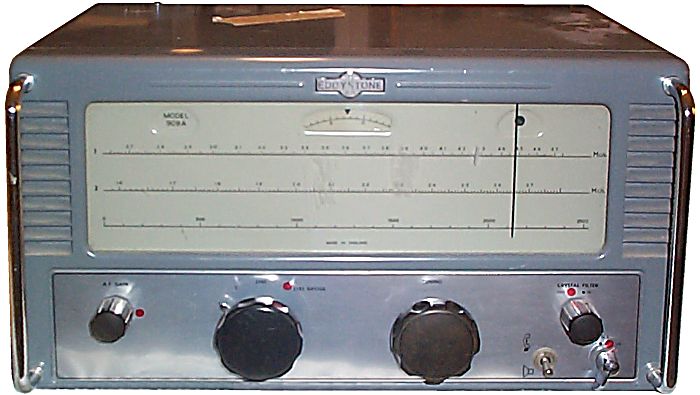

Eddystone 909A
| Type: |
HF receiver |
| Frequency Range: |
1.6-2.7 / 2.7-4.7 MHz |
| Mode: |
AM/CW |
| Sensitivity: |
Better than 10 uV |
| Selectivity: |
N/A |
| Image rejection: |
Better than 90 dB |
| Voltage: |
24 VDC or Mains |
| Current Drain: |
70 mA @ 100-150 VAC
0.6 A @ 24 VDC |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
430*220*250 mm |
| Weight: |
14 Kg |
| Manufactured: |
England, 1964-196x |
| Other: |
|
| Related Documents: |
|
|
