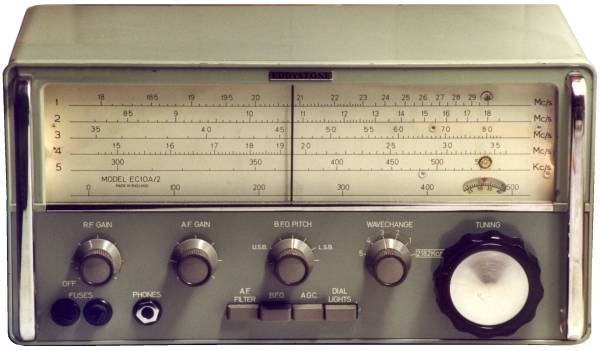

Eddystone EC10A/2
| Type: |
HF receiver |
| Frequency Range: |
0.3-0.55 / 1.5-30 MHz in five bands |
| Mode: |
AM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12 or 24 VDC |
| Current Drain: |
Max 250 mA @ 13.8 VDC |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
318*159*180 mm |
| Weight: |
6.7 Kg |
| Manufactured: |
England, 196x-196x |
| Other: |
|
| Related Documents: |
|
|
