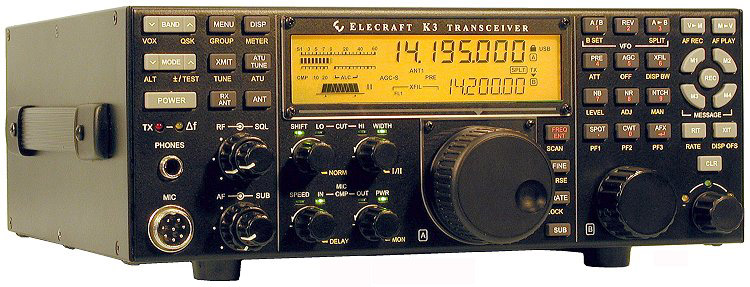

Elecraft K3/10
| Type: |
Amateur Transceiver |
| Frequency Range: |
RX: 0.5-30 / 50-54 MHz
TX: 10-160 m + WARC / 6 m |
| Modes: |
AM/FM/SSB/CW |
| Memories: |
100 general frequency memories with alphanumeric text labeling
plus 4 scratchpad memories per band |
| RF Power output: |
100W or 10W(upgradable) |
| Tuning Steps: |
1/10/20/50 Hz; per-mode
coarse tuning of 1/2.5/5/10 kHz, or user-selected rate. |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA, TX: Max ? mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
USA, 2007-200x |
| Other: |
RS-232C. Built-in PSK31/CW/RTTY decoder/encoder
Built-in keyer. DVR option. Sub RX option |
| Related Documents: |
|
|
