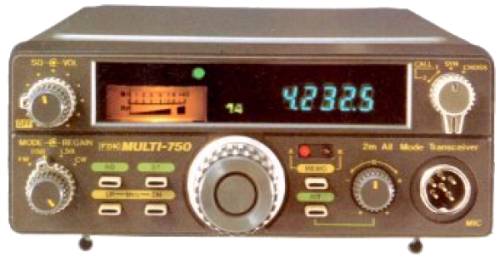

Fdk Multi-750
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
144-148 MHz |
| Mode: |
FM/SSB/CW |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.4-0.8 A
TX: Max 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
163*73*260 mm |
| Weight: |
2.6 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
2 memories |
| Related Documents: |
|
|
