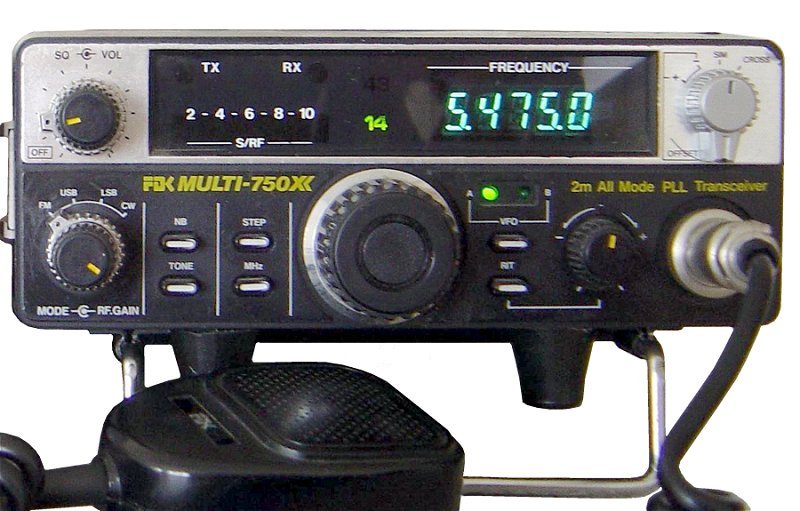

Fdk Multi-750XX
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
144-146 MHz (5 KHz/100 Hz steps) |
| Mode: |
All-mode |
| RF Power output: |
Hi: 20 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
1983-19xx |
| Other: |
70 cm/10 W option (Expander 430X) |
