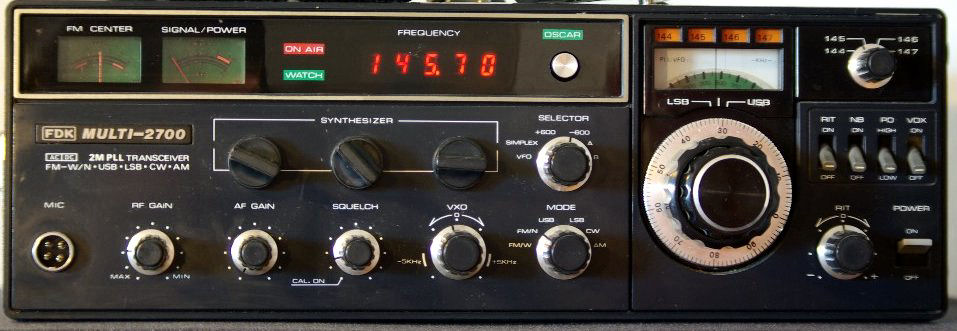

Fdk Multi-2700
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
144-146 MHz |
| Mode: |
AM/FM/SSB/CW |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: ? mA
TX: ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
375*130*310 mm |
| Weight: |
14 Kg |
| Manufactured: |
Japan, 1979-19xx |
| Other: |
RX: 10 m for Oscar operation |
