| Type: |
HF/VHF Receiver |

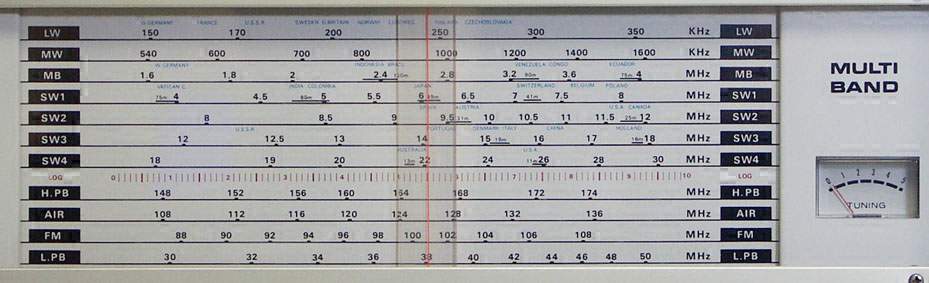

| Frequency Range: |
LW: 0.15-0.35 MHz
MW: 0.54-1.6 MHz
MB: 1.6-4.0 MHz
SW1: 4.0-8.0 MHz
SW2: 8.0-12.0 MHz
SW3: 12.0-18.0 MHz
SW4: 18.0-30.0 MHz
H PB: 148-174 MHz
Air: 108-136 MHz
FM: 88-108 MHz
L PB: 76-86 MHz |
| Modes: |
AM/FM/SSB |
| Memory Channels: |
N/A |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Speed: |
N/A |
| Search Speed: |
N/A |
| Increment Steps: |
N/A |
| Scan Delay: |
N/A |
| Voltage: |
Internal: 9 VDC (6x "C" Cell Batteries)
External:Mains |
| Current Drain: |
? mA |
| Aerial Input: |
Built-in whip and ferrite bar |
| Dimensions (W*H*D): |
380 x 260 x 140 mm |
| Weight: |
6 Kg |
| Manufactured: |
Japan, 197x-197x (Discontinued) |
| Other: |
Same As Koyo KTR-1770 |
