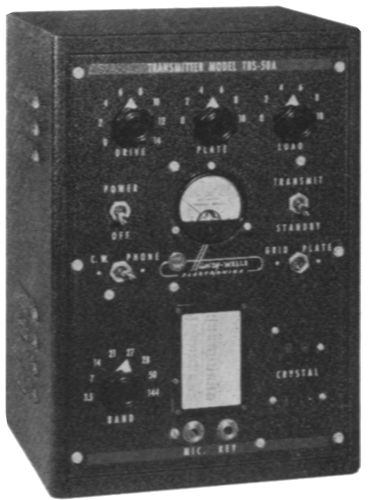

| Type: | Amateur HF/VHF Transmitter |
| Frequency Range: | 10-80 m/6 m/2 m |
| Modes: | AM/CW |
| RF Power Output: | 50 W (input) |
| Voltage: | Mains |
| Current Drain: | Max ? A |
| Impedance: | 50-500 ohms balanced |
| Dimensions (W*H*D): | 9.25 x 13.25 x 8.5" |
| Weight: | 17 Lbs |
| Manufactured: | USA, 1948-194x |
| Other: | Extra pre-amp for Hi-Z microphones New price 1948 in the US: $121.25 |
| Related Documents: |
