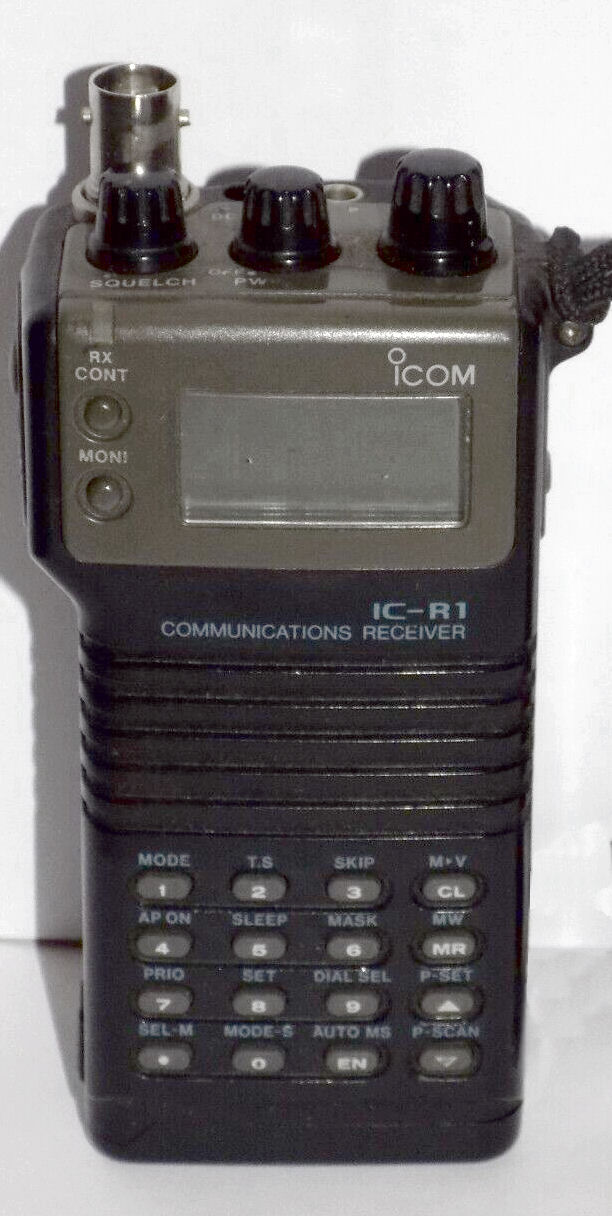

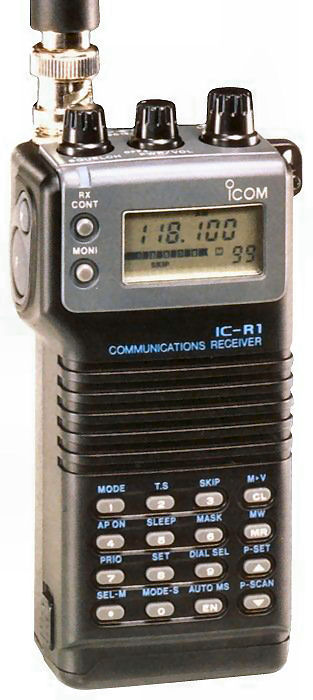

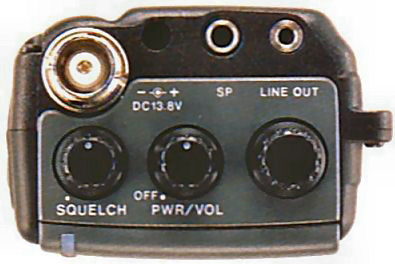

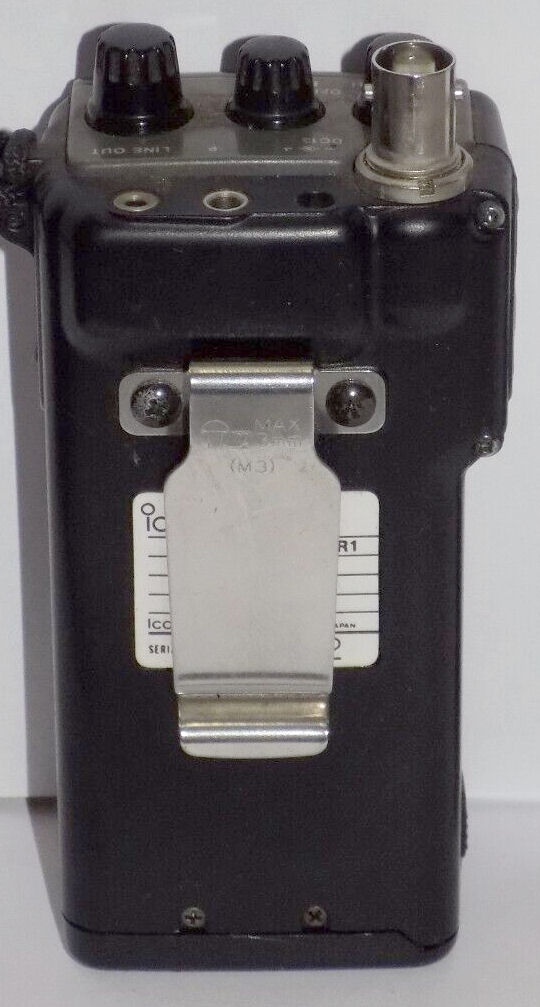

Icom IC-R1
| Type:/TD>
| HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.1-1300 MHz |
| Modes: |
AM/FM/WFM |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.2 VDC internal or 6-16 VDC external |
| Current Drain: |
15-300 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
49*103*35 mm |
| Weight: |
280 gr |
| Manufactured: |
1990-19xx |
| Other: |
100 memories |
| Related Documents: |
User Manual (7.2 MB)
Service Manual (10.0 MB) |
|
