| Type: |

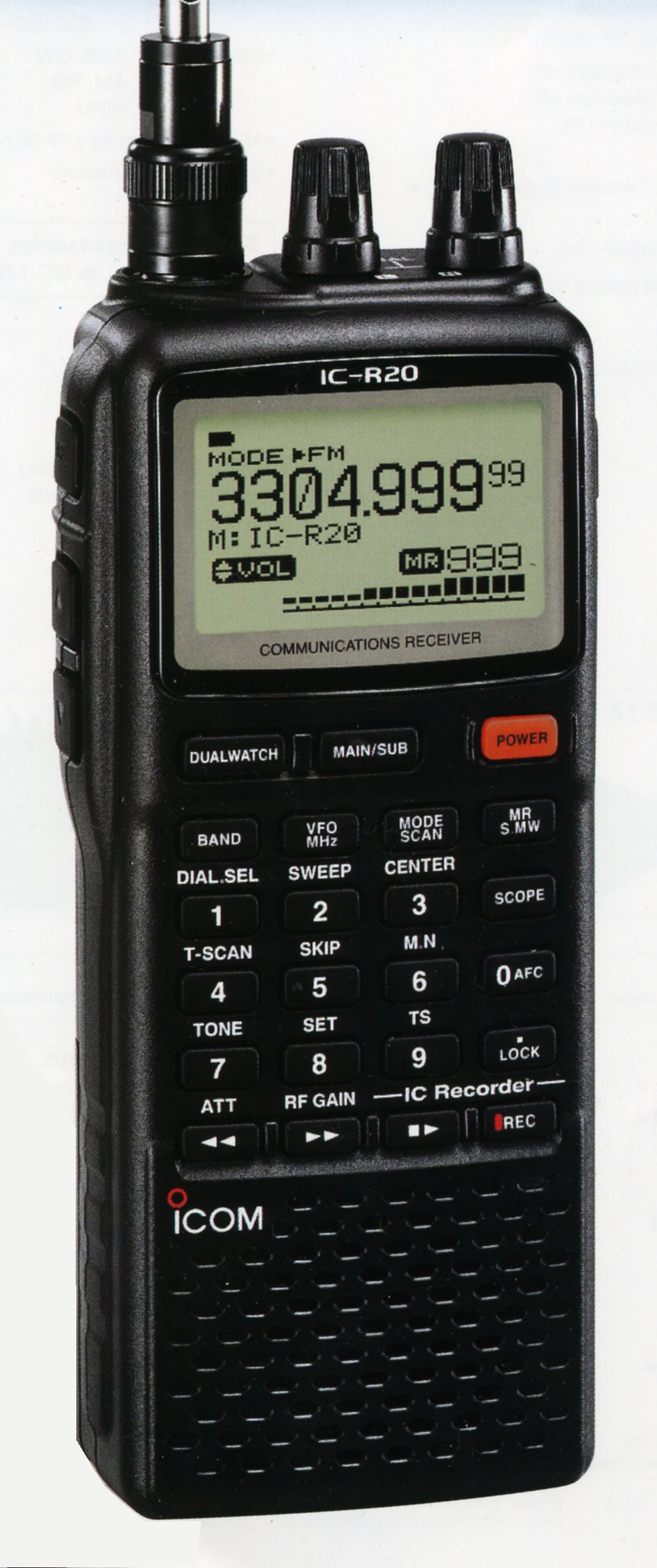

HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.15-3305 MHz (Cellular blocked in the US) |
| Modes: |
AM/FM/WFM/SSB/CW |
| Sensitivity: |
AM (10 dB S/N)
0.495-5 MHz: 2.2 uV
5-30 MHz: 1.4 uV
118-136 MHz: 1.4 uV
FM (12 dB SINAD)
1.62-5 MHz: 0.56 uV
5-222 MHz: 0.4 uV
330-833 MHz: 0.56 uV
833-1305 MHz: 0.71 uV
1330-2305 MHz: 5.6 uV
2330-3000 MHz: 18 uV
WFM (12 dB SINAD)
>76-108 MHz: 1.8 uV
175-222 MHz: 1.8 uV
470-770 MHz: 2.5 uV
SSB/CW (10 dB S/N)
0.495-5 MHz: 0.4 uV
5-30 MHz: 0.25 uV
50-54 MHz: 0.25 uV
118-147 MHz: 0.25 uV
330-470 MHz: 0.32 uV |
Selectivity: |
AM/FM
12 KHz (-6 dB), 30 KHz (-60 dB)
WFM
150 KHz (-6 dB)
SSB/CW
1.8 KHz (-6 dB) |
| Memoris: |
1000 Regular
200 Auto Write
50 Scan Edges
Non-volatile EEPROM Storage |
| Voltage: |
4.8-6 VDC (4*R6/AA) or 4.8-16 VDC external |
| Current Drain: |
Single band: 35-150 mA
Dual band: 82-340 mA |
| Aerial Input: |
50 ohms: BNC |
| Dimensions (W*H*D): |
60 x 142 x 35 mm |
| Weight: |
320 gr with Antenna and BP-206 |
| Manufactured: |
Japan: 2004-200x (Discontinued) |
| Other: |
CI-V. VSC. Bandscope |
| Related Documents: |
User Manual (2.7 MB)
Service Manual (6.7 MB) |
