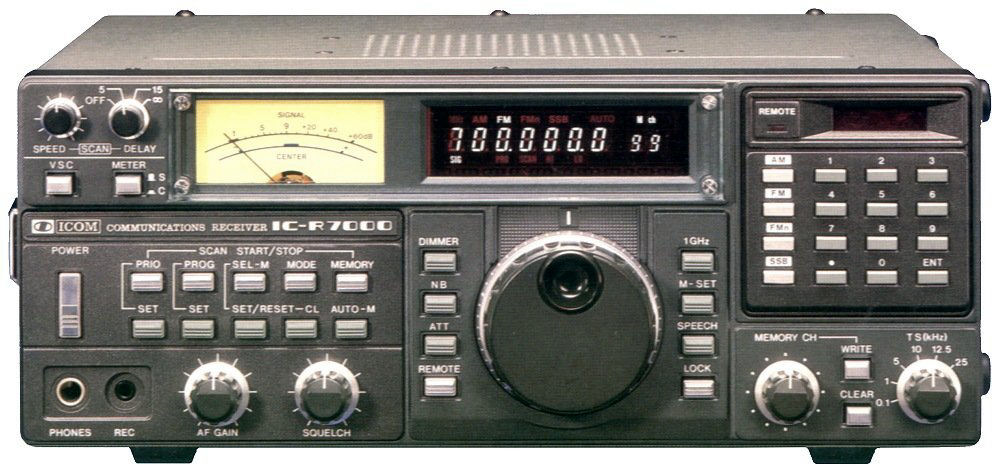

Icom IC-R7000
| Type:
|
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
25-2000 MHz (Gap between 1000-1025 MHz) |
| Modes: |
AM/FM/WFM/SSB |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
Max 1.65 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
286*110*276 mm |
| Weight: |
7.5 Kg |
| Manufactured: |
Japan: 1986-19xx |
| Other: |
99 memories. TV and remote control option |
| Related Documents: |
User Manual (3.2 MB)
Service Manual (21.6 MB) |
 |
