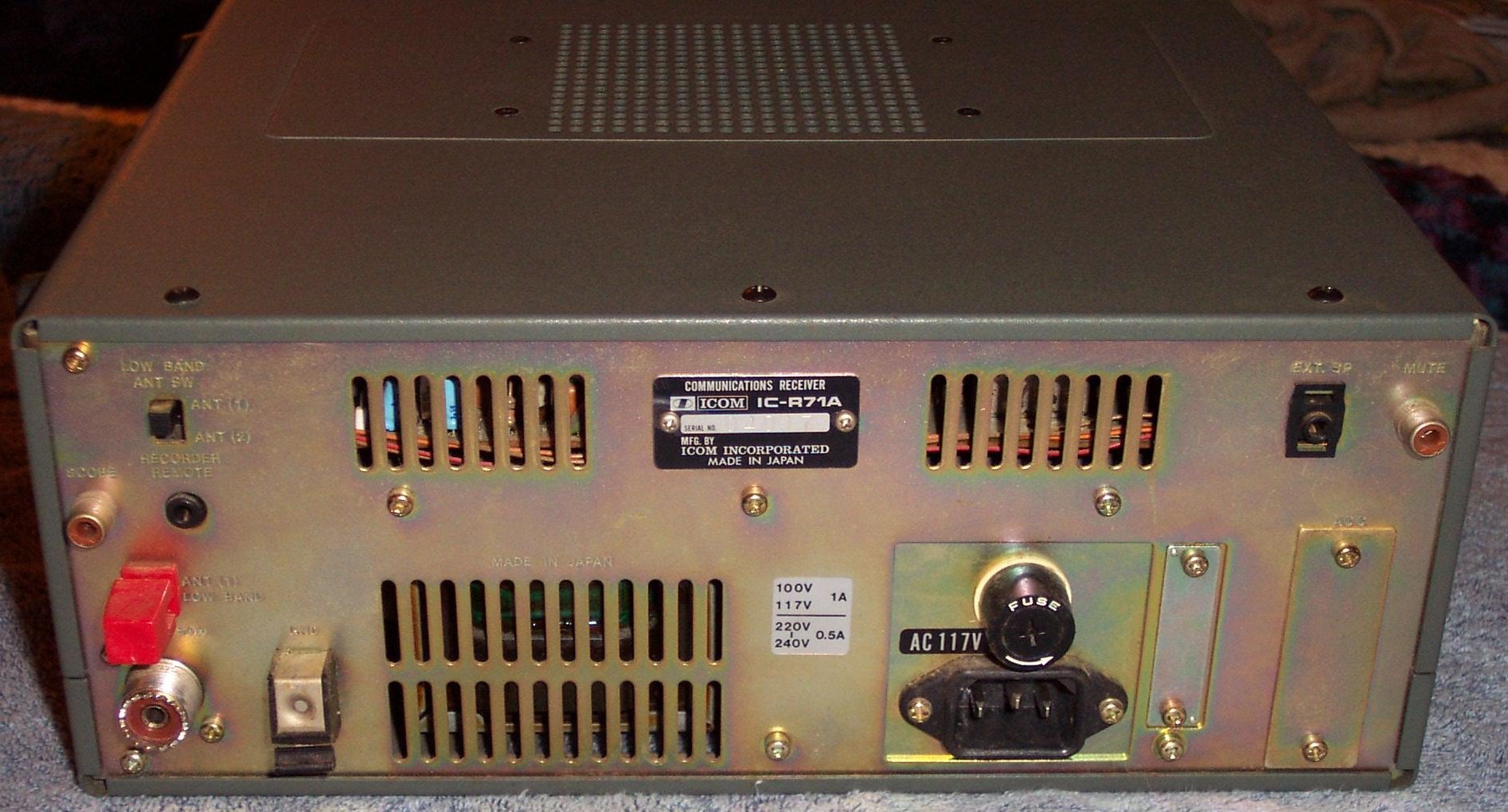

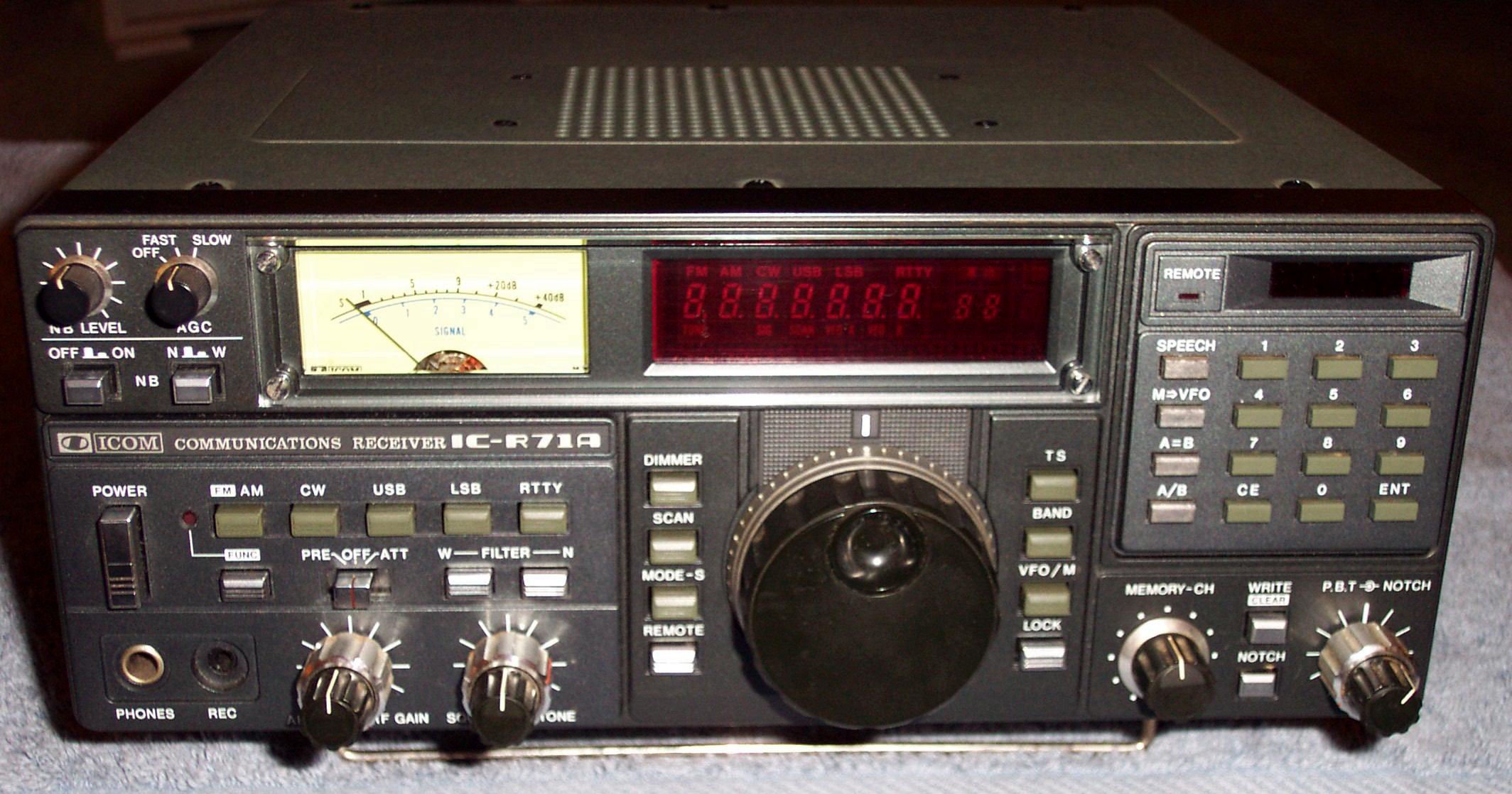

Icom IC-R71A
| Type:
|
HF Receiver |
| Frequency Range: |
0.1-30 MHz |
| Modes: |
AM/SSB/CW/RTTY (FM option) |
| Sensitivity: |
AM (10 dB S+N/N)
0.1-1.6 MHz: 3 uV
1.6-30 MHz: <0.5 uV
SSB/CW/RTTY (10 dB S+N/N)
0.1-1.6 MHz: 1 uV
1.6-30 MHz: <0.15 uV
FM (10 dB SINAD)
1.6-30 MHz: <0.3 uV |
| Selectivity: |
AM: 2.7-6 KHz (-6 dB), 15 KHz (-50 dB)
SSB/CW/RTTY: 0.5-2.3 KHz (-6 dB), 4.2 KHz (-60 dB)
CW-N/RTTY-N: 500 Hz (-6 dB), 1.5 KHz (-60 dB)
FM: 15 KHz (-6 dB), 25 KHz (-60 dB) |
| Image rejection: |
>60 dB |
| Voltage: |
Mains (13.8 VDC option) |
| Current Drain: |
? mA |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
286*111*276 mm |
| Weight: |
7.5 Kg |
| Manufactured: |
1984-1996 |
| Other: |
32 memories. PBT |
| Related Documents: |
User Manual (4.5 MB)
Service Manual (Pt1) (32.3 MB),
(Pt2) (16.9 MB),
(Pt3) (18.0 MB),
(Pt4) (24.3 MB) |
 |
