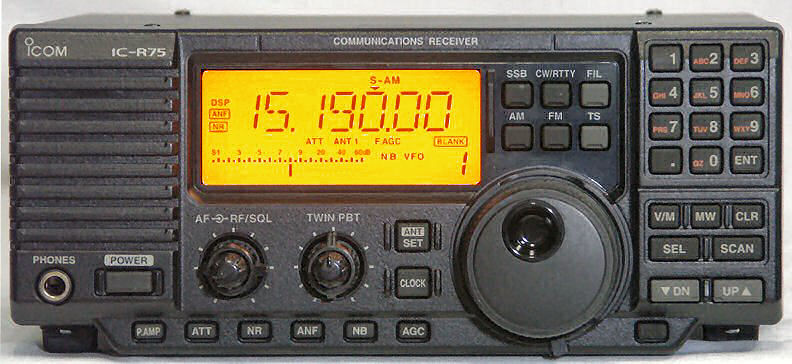

Icom IC-R75
| Type:
|
HF/VHF Receiver |
| Frequency Range: |
0.03-60 MHz |
| Modes: |
AM/Synchro-AM/FM/SSB/CW/RTTY |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
0.9-1.1 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*94*229 mm |
| Weight: |
3 Kg |
| Manufactured: |
1999-2005, 2005-200x (Icom restarted production after protests from the market) |
| Other: |
|
| Related Documents: |
User Manual (1.11 MB)(Serial number is 120XXXX , 180XXXX ,190XXXX )
User Manual (3.48 MB) (Other serial numbers (Not listed above))
Remote software manual (42.9 KB) |
 |
