| Type:
|
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.01-3000 MHz |
| Modes: |
AM/FM/WFM/SSB/CW/FSK/DV (D-Star, Apco P25, NXDN, dPMR & DCR) |
| Memories: |
2000 Regular With Alpha Tags
50 Scan Edge Pairs
200 Auto Memory Write
100 Scan Skip |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 2 A |
| Aerial Input: |

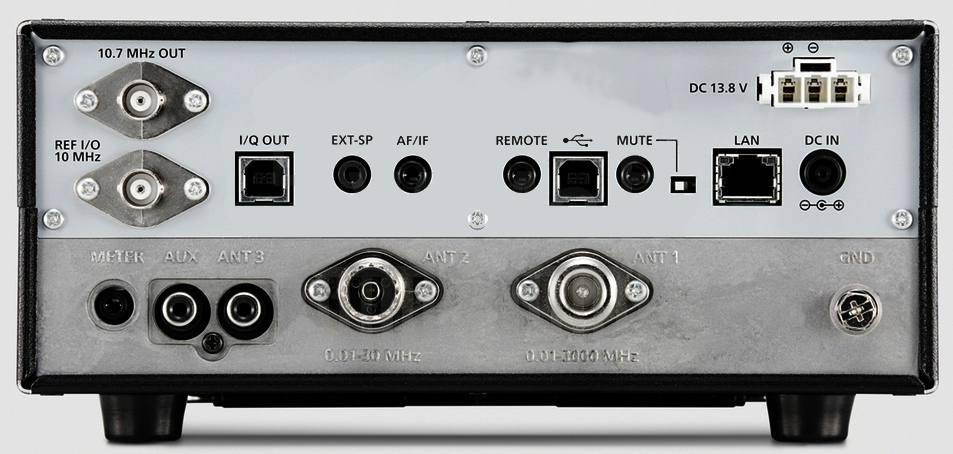

50 ohms, SO-239 on HF, N-type on VHF/UHF |
| Dimensions (W*H*D): |
220 x 90 x 230 mm |
| Weight: |
4.3 Kg |
| Manufactured: |
Japan: 2016-20xx |
| Other: |

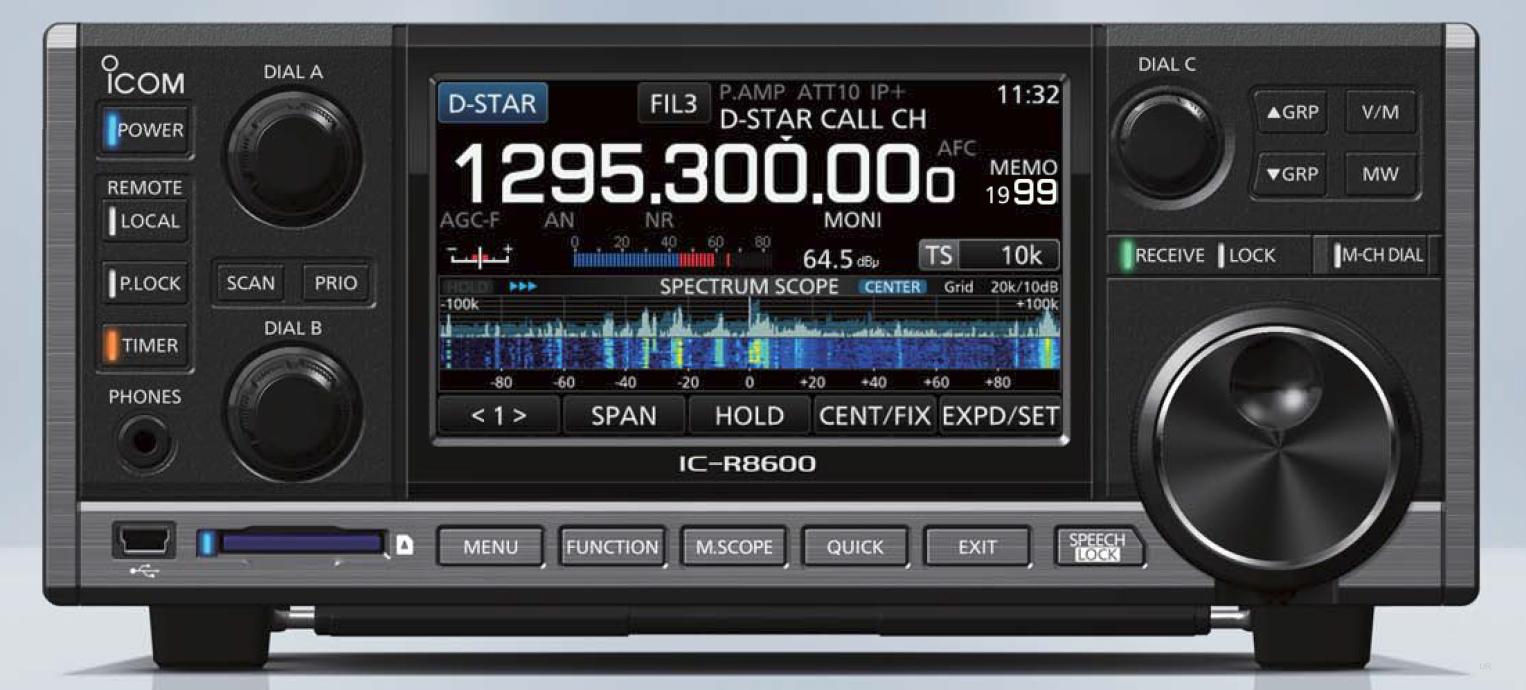

4.3" touch screen color display with spectrum scope and waterfall
SD Card Slot for Receiver Recorder, CI-V port
SDR with I/Q output. 10.7 MHz IF output. LAN jack. USB port
11 HF and 13 VHF/UHF bandpass filters |
| Related Documents: |
User Manual (21.3 MB)
Brochure (883 kb) |
