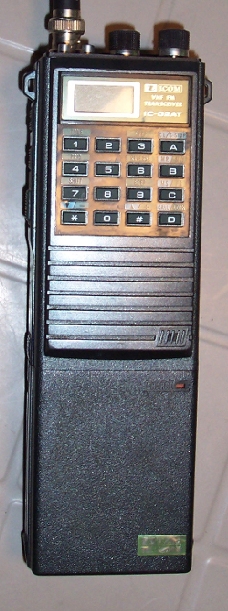

Icom IC-02AT
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz |
| Modes: |
FM |
| Memories: |
10 |
| RF Power output: |
Hi: 3-5 W (depending on voltage)
Lo: 0.5 W |
| Frequency Steps: |
5, 10, 12.5, 15, 20, 25 kHz |
| Voltage: |
5.5-16 VDC |
| Current Drain: |
RX: Max 140 mA
TX: Max 1.2 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*117*35 mm (without battery) |
| Weight: |
495 gr (with BP-3) |
| Manufactured: |
1983-19xx |
| Other: |
10 memories |
| Related Documents: |
User Manual (3.9 MB)
|
|
