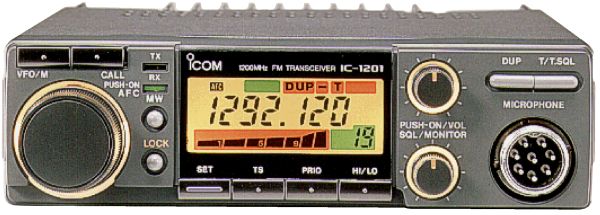

Icom IC-1201
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
1260-1300 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max 6 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (H*W*D): |
40*140*200 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
