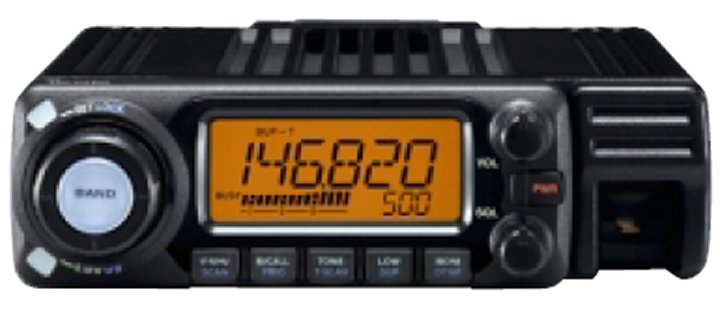

Icom IC-208H
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 440-450 MHz
RX: 118-174 / 230-549 /810-999.99 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
VHF: 55/15/5 W
UHF: 50/15/5 |
| Sensitivity: |
0.18 uV (12 dB SINAD) |
| Selectivity: |
12 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: |
Better than 60 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.8-1 A
TX: Max 12 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
141*40*185 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
512 (incl. 10 Scan Edges & 2 Calls) |
| Related Documents: |
User Manual (3.16 MB) |
|
