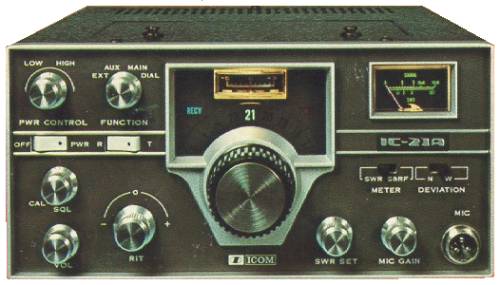

Icom IC-21A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM |
| RF Power output: |
0.5-10 W |
| Sensitivity: |
0.4 uV (20 dB S/N) |
| Selectivity: |
10 KHz (-6 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
230*111*260 mm |
| Weight: |
7.2 Kg |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
Diode matrix programmable |
| Related Documents: |
|
|
