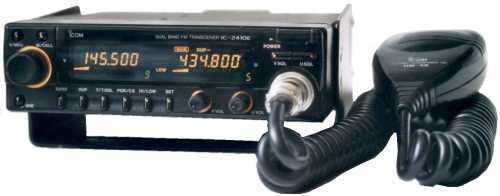

Icom IC-2410E
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 118-174 MHz / 320-479 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 25/25 W
Mid: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max 8 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*40*175 mm |
| Weight: |
1.35 Kg |
| Manufactured: |
1991-19xx |
| Other: |
Twin RX |
