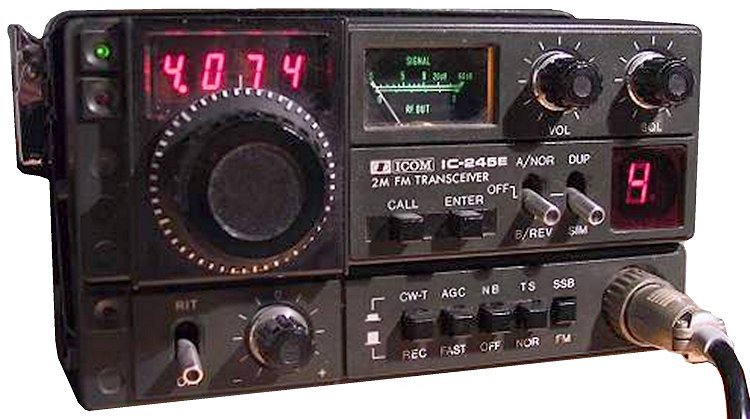

Icom IC-245E
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Hi: 10 W
Lo: ? W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.7 A
TX: Max 2.8 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
157*88*220 mm |
| Weight: |
2.66 Kg |
| Manufactured: |
1977-19xx |
| Other: |
|
| Related Documents: |
|
|
