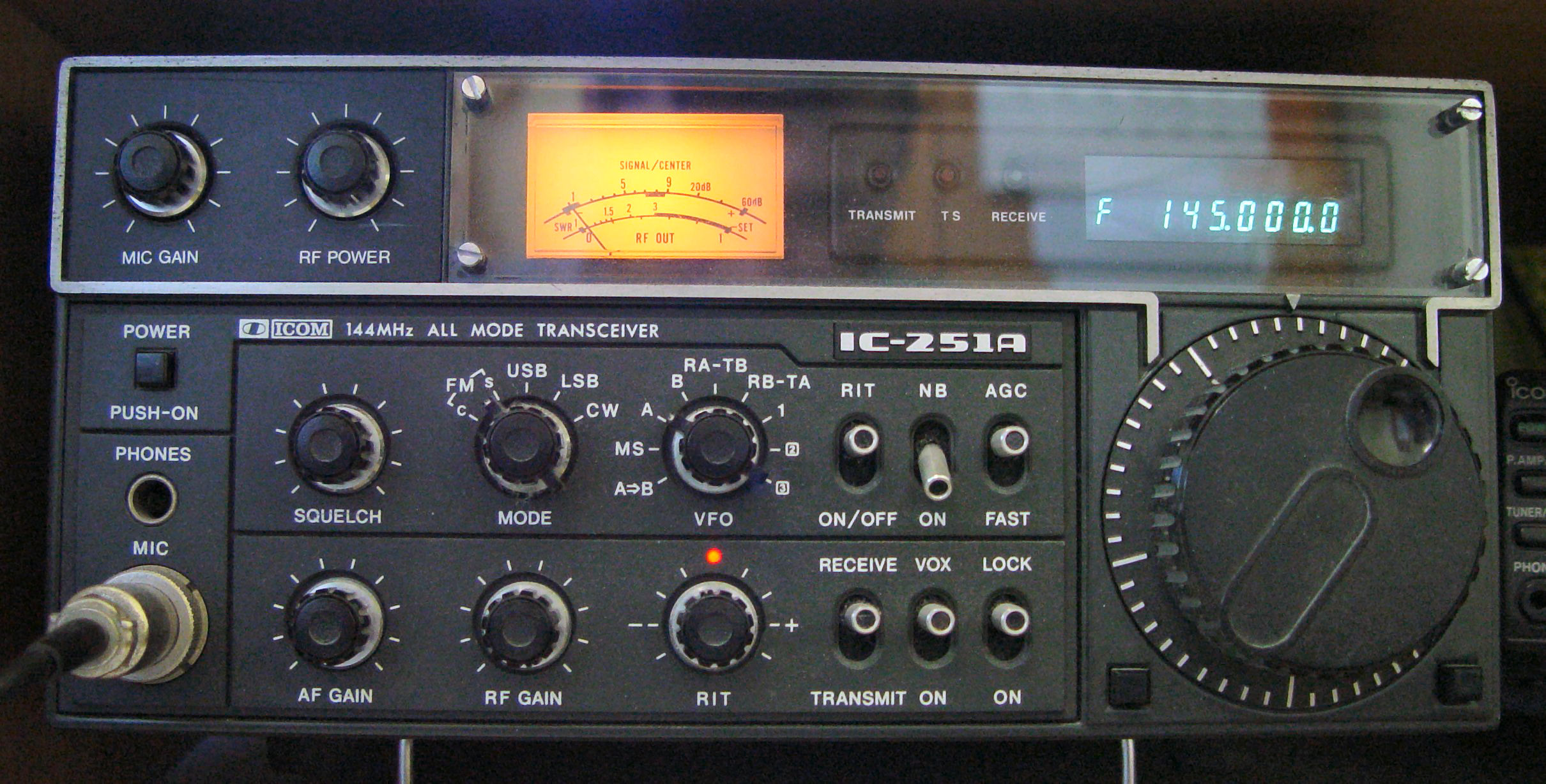

Icom IC-251A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (5/1/0.1 KHz steps) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
1-10 W |
| Sensitivity: |
SSB/CW: Better than 0.5 uV (10 dB S+N/N)
FM: Better than 0.6 uV for 20 dB noise quieting |
| Selectivity: |
SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: |
More than 60 dB |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max 0.6 A
TX: Max 2.3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*111*264 mm |
| Weight: |
5 Kg |
| Manufactured: |
Japan, 1980-198x |
| Other: |
3 memories |
| Related Documents: |
User Manual (7 MB) |
|
