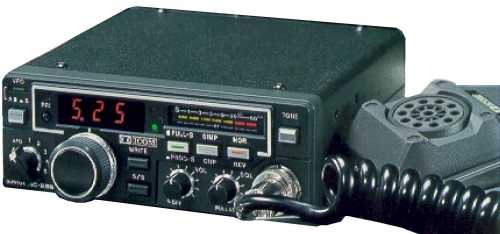

Icom IC-25A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
143.8-148.2 MHz (5/15 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 25 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 4.8 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*50*177 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
1981-19xx |
| Other: |
5 memories |
| Related Documents: |
User Manual (4.3 MB) |
|
