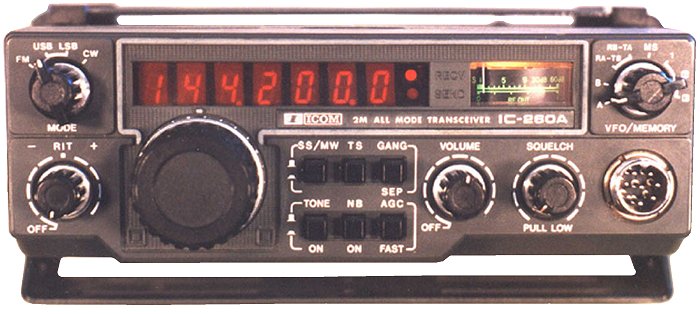

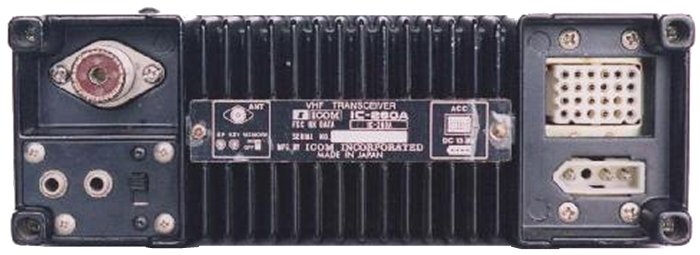

Icom IC-260A
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz (5/1/0.1 KHz steps) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.8 A
TX: Max 3.1 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
185*64*223 mm |
| Weight: |
2.7 Kg |
| Manufactured: |
1979-19xx |
| Other: |
|
| Related Documents: |
|
 |
